Joomla! Documentation™

How To Access

To create a new IFrame Wrapper Menu Item:

• Select Menus → [name of the menu] from the drop-down menu on the back-end of your Joomla! installation (for example, Menus → Main Menu).
• Click the New Toolbar button to create a new menu item.
• Click the Menu Item Type Select button and then click the Iframe Wrapper Menu Item link under Wrapper.

To edit an existing IFrame Wrapper Menu Item, click its Title in Menu Manager: Menu Items.

Description

Used to create a page with embedded content using an IFrame with control of iframe size, width and height.

Screenshot

Details

Details Tab

For more information please see Menu Item Manager: Details Tab

Required Settings

• URL. Field to enter a URL (web page address). Generally, it is a good idea to always add http:// or https:// when providing a URL. There is a Auto add function to prefix a URL with http:// unless it detects the prefix in the URL. NOTE - Use the relative path to a web page address on Joomla installation. If your Joomla! website is http://www.example.com, then use /html_docs/example.html omitting http://www.example.com and make sure the 'Auto add' function is disabled.

• Menu Title. The title that will display for this menu item.

• Parent Item: The menu that this menu item (choice) will be part of. The menus defined for the site will show in the list box.

Advanced Tab

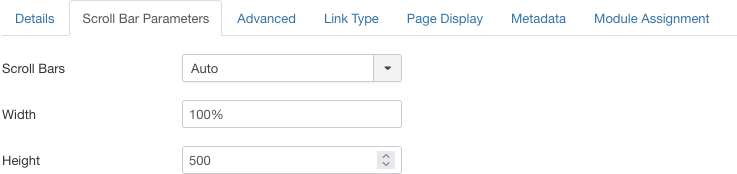

Scroll Bar Parameters

This Page is a Candidate for Deletion

This notice should remain for a minimum of 1 week after it was placed on the page. If discussion is still ongoing, it should remain until a consensus is reached, after which the page will either be deleted or this notice removed. If you disagree with its deletion, please discuss your reasons on its associated talk page, as applicable.

Remember to check if anything links here and the page history before deleting.

Last edit by Sandra97 (talk · contrib) · Last edited on Wed, 22 Mar 2017 10:56:15 +0000

• Scroll Bars: (No/Yes/Auto) Whether or not to include horizontal and vertical scroll bars, no or yes. Auto will add the scroll bars automatically when needed because of embedded page size.

This Page is a Candidate for Deletion

This notice should remain for a minimum of 1 week after it was placed on the page. If discussion is still ongoing, it should remain until a consensus is reached, after which the page will either be deleted or this notice removed. If you disagree with its deletion, please discuss your reasons on its associated talk page, as applicable.

Remember to check if anything links here and the page history before deleting.

Last edit by Sandra97 (talk · contrib) · Last edited on Wed, 22 Mar 2017 10:56:15 +0000

• Width: Width of the IFrame Window. Enter in a number of pixels or enter in a percentage (%). For example, "550" means 550 pixels. "75%" means 75% of the page width.

This Page is a Candidate for Deletion

This notice should remain for a minimum of 1 week after it was placed on the page. If discussion is still ongoing, it should remain until a consensus is reached, after which the page will either be deleted or this notice removed. If you disagree with its deletion, please discuss your reasons on its associated talk page, as applicable.

Remember to check if anything links here and the page history before deleting.

Last edit by Sandra97 (talk · contrib) · Last edited on Wed, 22 Mar 2017 10:56:15 +0000

• Height. Height of the IFrame Window. Enter in a number of pixels or enter in a percentage (%). For example, "550" means 550 pixels. "75%" means 75% of the page height.

Paramètres avancés

This Page is a Candidate for Deletion

This notice should remain for a minimum of 1 week after it was placed on the page. If discussion is still ongoing, it should remain until a consensus is reached, after which the page will either be deleted or this notice removed. If you disagree with its deletion, please discuss your reasons on its associated talk page, as applicable.

Remember to check if anything links here and the page history before deleting.

Last edit by Sandra97 (talk · contrib) · Last edited on Wed, 22 Mar 2017 10:56:15 +0000

• Auto Height. Automatically set height to height of external page. Note: This will only work if the external page is on the same domain. For example, http://www.example.com the external html must be in the example.com root file structure. Sub domains will not work, as a sub domain is considered a separate domain.

This Page is a Candidate for Deletion

This notice should remain for a minimum of 1 week after it was placed on the page. If discussion is still ongoing, it should remain until a consensus is reached, after which the page will either be deleted or this notice removed. If you disagree with its deletion, please discuss your reasons on its associated talk page, as applicable.

Remember to check if anything links here and the page history before deleting.

Last edit by Sandra97 (talk · contrib) · Last edited on Wed, 22 Mar 2017 10:56:15 +0000

• Auto Add. Automatically prefix web address with http://. This feature will automatically detect and not prefix a URL with http:// or https:// already used in the URL.

This Page is a Candidate for Deletion

This notice should remain for a minimum of 1 week after it was placed on the page. If discussion is still ongoing, it should remain until a consensus is reached, after which the page will either be deleted or this notice removed. If you disagree with its deletion, please discuss your reasons on its associated talk page, as applicable.

Remember to check if anything links here and the page history before deleting.

Last edit by Sandra97 (talk · contrib) · Last edited on Wed, 22 Mar 2017 10:56:15 +0000

• Frame Border. Show frame border which wrap the iframe.

Common Options

See Menu Item Manager: Edit/New Menu Item for help on fields common to all Menu Item types, under the Advanced Details Tab which includes:

• Link Type Options
• Page Display Options
• Metadata Options

Module Assignments Tab

See Menu Item Manager: New Menu Item for help on fields in Module Assignments for this Menu Item.

Toolbar

At the top left you will see the toolbar:

The functions are:

• Save. Saves the menu item and stays in the current screen.

• Save & Close. Saves the menu item and closes the current screen.

• Save & New. Saves the menu item and keeps the editing screen open and ready to create another menu item.

• Save as Copy. Saves your changes to a copy of the current menu item. Does not affect the current menu item.
  Note: This toolbar icon is only shown if you edit an existing menu item.

• Cancel. Closes the current screen and returns to the previous screen without saving any modifications you may have made.

• Help. Opens this help screen.
