Revision as of 09:46, 29 April 2013
This tutorial is for Joomla! CMS Version(s)

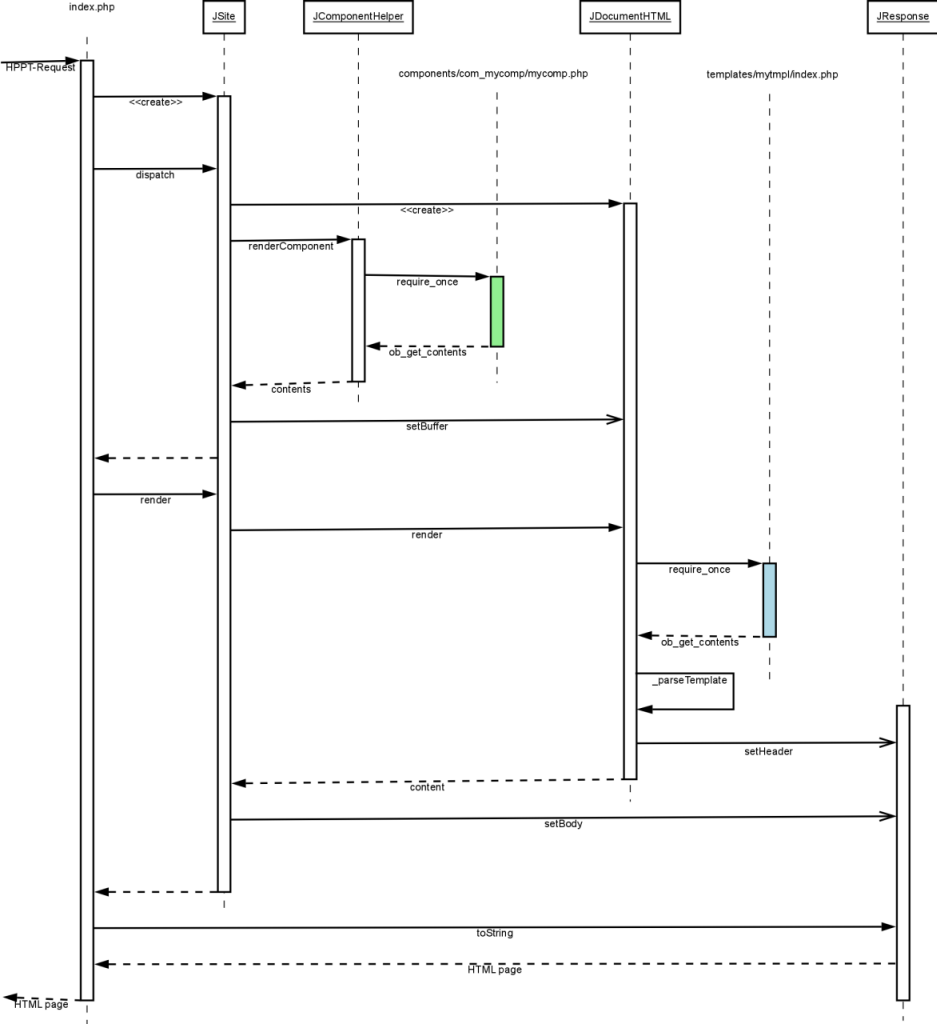

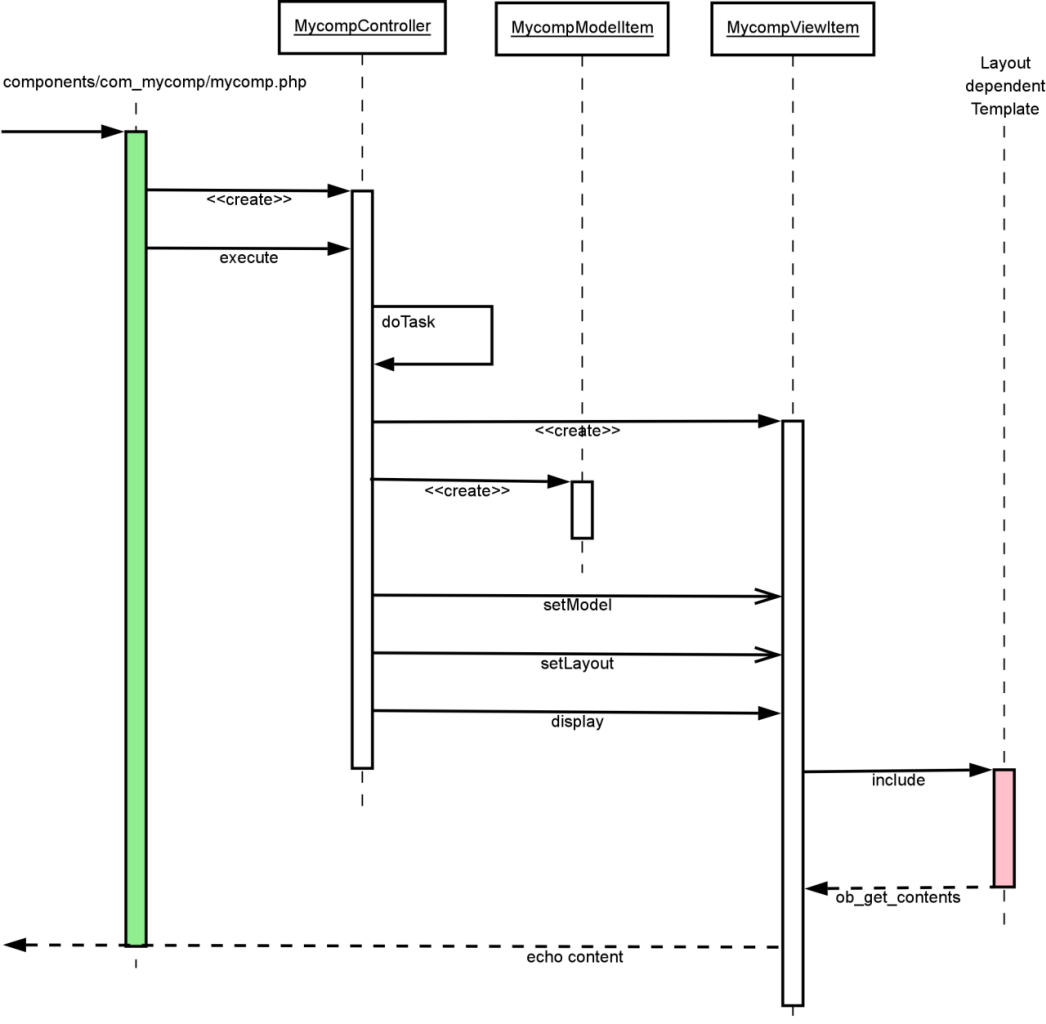

Here are two graphics that show the Joomla! program flow for the model-view-controller design pattern in Joomla. You can download the source files in Dia here: mvc_part1.dia mvc_part2.dia
